8051 Microcontroller Memory Organization

In the previous tutorial on 8051 Microcontroller, we have seen the 8051 Microcontroller Introduction and Basics, Pin Diagram, Pin Description and the Architecture overview. In this tutorial, we will continue exploring 8051 Microcontroller by understanding the 8051 Microcontroller Memory Organization.

When the differences between microprocessor and microcontroller are mentioned in the previous tutorial, the main difference can be stated as on-chip memory i.e. a Microcontroller has both Program Memory (ROM) and Data Memory (RAM) on the same chip (IC) whereas a Microprocessor has to be externally interface with the memory modules.

Hence, it is clear that the memory is an important part of the 8051 Microcontroller Architecture (for that matter, any Microcontroller). So, it is important for us to understand the 8051 Microcontroller Memory Organization i.e. how memory is organized, how the processor accesses each memory and how to interface external memory with 8051 Microcontroller.

Before going in to the details of the 8051 Microcontroller Memory Organization, we will first see a little bit about the Computer Architecture and then proceed with memory organization.

Also read about 8051 MICROCONTROLLER ARCHITECTURE OVERVIEW.

Types of Computer Architecture

Basically, Microprocessors or Microcontrollers are classified based on the two types of Computer Architecture: Von Neumann Architecture and Harvard Architecture.

Von Neumann Architecture

Von Neumann Architecture or Princeton Architecture is a Computer Architecture, where the Program i.e. the Instructions and the Data are stored in a single memory.

Since the Instruction Memory and the Data Memory are the same, the Processor or CPU cannot access both Instructions and Data at the same time as they use a single bus.

This type of architecture has severe limitations to the performance of the system as it creates a bottleneck while accessing the memory.

Harvard Architecture

Harvard Architecture, in contrast to Von Neumann Architecture, uses separate memory for Instruction (Program) and Data. Since the Instruction Memory and Data Memory are separate in a Harvard Architecture, their signal paths i.e. buses are also different and hence, the CPU can access both Instructions and Data at the same time.

Almost all Microcontrollers, including 8051 Microcontroller implement Harvard Architecture.

8051 Microcontroller Memory Organization

The 8051 Microcontroller Memory is separated in Program Memory (ROM) and Data Memory (RAM). The Program Memory of the 8051 Microcontroller is used for storing the program to be executed i.e. instructions. The Data Memory on the other hand, is used for storing temporary variable data and intermediate results.

8051 Microcontroller has both Internal ROM and Internal RAM. If the internal memory is inadequate, you can add external memory using suitable circuits.

Read this interesting post: 8051 MICROCONTROLLER PROJECTS FOR ENGINEERING STUDENTS.

Program Memory (ROM) of 8051 Microcontroller

In 8051 Microcontroller, the code or instructions to be executed are stored in the Program Memory, which is also called as the ROM of the Microcontroller. The original 8051 Microcontroller by Intel has 4KB of internal ROM.

Some variants of 8051 like the 8031 and 8032 series doesn’t have any internal ROM (Program Memory) and must be interfaced with external Program Memory with instructions loaded in it.

Almost all modern 8051 Microcontrollers, like 8052 Series, have 8KB of Internal Program Memory (ROM) in the form of Flash Memory (ROM) and provide the option of reprogramming the memory.

In case of 4KB of Internal ROM, the address space is 0000H to 0FFFH. If the address space i.e. the program addresses exceed this value, then the CPU will automatically fetch the code from the external Program Memory.

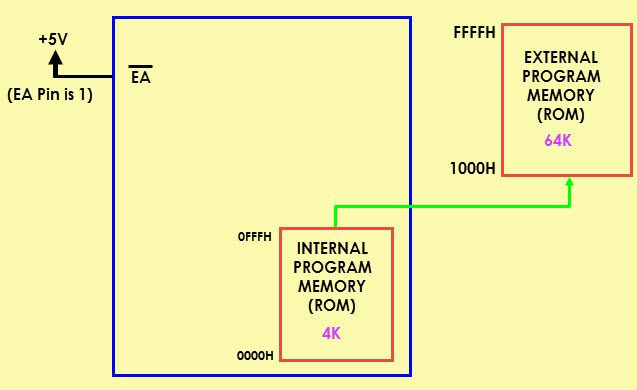

For this, the External Access Pin (EA Pin) must be pulled HIGH i.e. when the EA Pin is high, the CPU first fetches instructions from the Internal Program Memory in the address range of 0000H to 0FFFFH and if the memory addresses exceed the limit, then the instructions are fetched from the external ROM in the address range of 1000H to FFFFH.

There is another way to fetch the instructions: ignore the Internal ROM and fetch all the instructions only from the External Program Memory (External ROM). For this scenario, the EA Pin must be connected to GND. In this case, the memory addresses of the external ROM will be from 0000H to FFFFH.

Data Memory (RAM) of 8051 Microcontroller

The Data Memory or RAM of the 8051 Microcontroller stores temporary data and intermediate results that are generated and used during the normal operation of the microcontroller. Original Intel’s 8051 Microcontroller had 128B of internal RAM.

But almost all modern variants of 8051 Microcontroller have 256B of RAM. In this 256B, the first 128B i.e. memory addresses from 00H to 7FH is divided in to Working Registers (organized as Register Banks), Bit – Addressable Area and General Purpose RAM (also known as Scratchpad area).

In the first 128B of RAM (from 00H to 7FH), the first 32B i.e. memory from addresses 00H to 1FH consists of 32 Working Registers that are organized as four banks with 8 Registers in each Bank.

The 4 banks are named as Bank0, Bank1, Bank2 and Bank3. Each Bank consists of 8 registers named as R0 – R7. Each Register can be addressed in two ways: either by name or by address.

To address the register by name, first the corresponding Bank must be selected. In order to select the bank, we have to use the RS0 and RS1 bits of the Program Status Word (PSW) Register (RS0 and RS1 are 3^rd and 4^th bits in the PSW Register).

When addressing the Register using its address i.e. 12H for example, the corresponding Bank may or may not be selected. (12H corresponds to R2 in Bank2).

The next 16B of the RAM i.e. from 20H to 2FH are Bit – Addressable memory locations. There are totally 128 bits that can be addressed individually using 00H to 7FH or the entire byte can be addressed as 20H to 2FH.

For example 32H is the bit 2 of the internal RAM location 26H.

The final 80B of the internal RAM i.e. addresses from 30H to 7FH, is the general purpose RAM area which are byte addressable.

These lower 128B of RAM can be addressed directly or indirectly.

The upper 128B of the RAM i.e. memory addresses from 80H to FFH is allocated for Special Function Registers (SFRs). SFRs control specific functions of the 8051 Microcontroller. Some of the SFRs are I/O Port Registers (P0, P1, P2 and P3), PSW (Program Status Word), A (Accumulator), IE (Interrupt Enable), PCON (Power Control), etc.

SRFs Memory addresses are only direct addressable. Even though some of the addresses between 80H and FFH are not assigned to any SFR, they cannot be used as additional RAM area.

In some microcontrollers, there is an additional 128B of RAM, which share the memory address with SFRs i.e. 80H to FFH. But, this additional RAM block is only accessed by indirect addressing.

Interfacing External Memory with 8051 Microcontroller

We have seen that a typical 8051 Microcontroller has 4KB of ROM and 128B of RAM (most modern 8051 Microcontroller variants have 8K ROM and 256B of RAM).

The designer of an 8051 Microcontroller based system is not limited to the internal RAM and ROM present in the 8051 Microcontroller. There is a provision of connecting both external RAM and ROM i.e. Data Memory and Program.

The reason for interfacing external Program Memory or ROM is that complex programs written in high – level languages often tend to be larger and occupy more memory.

Another important reason is that chips like 8031 or 8032, which doesn’t have any internal ROM, have to be interfaced with external ROM.

A maximum of 64B of Program Memory (ROM) and Data Memory (RAM) each can be interface with the 8051 Microcontroller.

The following image shows the block diagram of interfacing 64KB of External RAM and 64KB of External ROM with the 8051 Microcontroller.

In this tutorial, we have seen the 8051 Microcontroller Memory Organization, Internal ROM and RAM and how to interface external ROM and RAM with 8051 Microcontroller.

The post 8051 Microcontroller Memory Organization appeared first on Electronics Hub.

Deep-depletion: A new concept for MOSFETs

Diamond is largely recognized as the ideal material in wide bandgap development, but realizing its full potential in field-effect transistors has been challenging. Researchers incorporate a new approach by using the deep-depletion regime of bulk-boron-doped diamond MOSFETs.

Rolling the dice on perovskite interfaces

Researchers have developed a Bayesian probability-based computer program to help work out the structure of perovskite oxides at their interfaces.

Innovative material for soft sensor could bring new tactile tech

A new type of soft and stretchable sensor could find uses in applications ranging from athletics and health monitoring to prosthetics and virtual reality.

Envisioning a new engineering field: Understanding atomic-scale patterns

The phenomenon that forms interference patterns on television displays when a camera focuses on a pattern like a person wearing stripes has inspired a new way to conceptualize electronic devices. Researchers are showing how the atomic-scale version of this phenomenon may hold the secrets to help advance electronics design to the limits of size and speed.

Piezoelectrics stretch their potential with a method for flexible sticking

Thin-film piezoelectrics, with dimensions on the scale of micrometers or smaller, offer potential for new applications where smaller dimensions or a lower voltage operation are required. Researchers have demonstrated a new technique for making piezoelectric microelectromechanical systems by connecting a sample of lead zirconate titanate piezoelectric thin films to flexible polymer substrates.

Highly stable perovskite solar cells developed

Researchers have developed highly stable perovskite solar cells (PSCs), using edged-selectively fluorine (F) functionalized graphene nano-platelets (EFGnPs). The breakthrough is especially significant since the cells are made out of fluorine, a low-cost alternative to gold.

Electronic entropy enhances water splitting

An electron transitioning from state to state increases cerium's entropy, making it ideal for hydrogen production, researchers have found.

Optical communication coming to silicon chips

Ultrathin films of a semiconductor that emits and detects light can be stacked on top of silicon wafers, researchers report in a study that could help bring optical communication onto silicon chips.

Understanding how electrons turn to glass

Researchers have gained new insight into the electronic processes that guide the transformation of liquids into a solid crystalline or glassy state.

Taming 'wild' electrons in graphene

Graphene -- a one-atom-thick layer of carbon -- is a better conductor than copper and is very promising for electronic devices, but with one catch: Electrons that move through it can't be stopped. Until now, that is. Scientists have learned how to tame the unruly electrons in graphene, paving the way for the ultra-fast transport of electrons with low loss of energy in novel systems.

What Are The Different Types of Sequential Circuits?

A sequential circuit is a logical circuit, where the output depends on the present value of the input signal as well as the sequence of past inputs. While a combinational circuit is a function of present input only. A sequential circuit is a combination of combinational circuit and a storage element. the sequential circuits use […]

The post What Are The Different Types of Sequential Circuits? appeared first on ElProCus - Electronic Projects for Engineering Students.

Valley polarization for electronic and optoelectronic technologies clarified

Many of today's technologies, such as, solid-state lighting, transistors in computer chips, and batteries in cell phones rely simply on the charge of the electron and how it moves through the material. In certain materials, such as the monolayer transition metal dichalcogenides (TMDs), electrons can be selectively placed into a chosen electronic valley using optical excitation.

8051 Microcontroller Architecture

In the previous 8051 Microcontroller Tutorials, we have seen some basics of 8051 Microcontroller and also the Pin Diagram and Pin Description of 8051 Microcontroller. In this tutorial, we will see the 8051 Microcontroller Architecture and the different components in the architecture.

We have already seen the Pin Diagram of 8051 Microcontroller for its standard 40 – pin DIP (Dual In – line Package) configuration. In this tutorial, in the process of dealing with the 8051 Microcontroller Architecture, we will see the hardware aspects of the 8051 microcontroller like I/O PORTS, RAM, ROM, Timers and Serial Port etc.

Before going into the details of the 8051 Microcontroller Architecture, we will first see the Basic Components of a Microcontroller, which makes a Microcontroller a true Computer on chip.

Before continuing with this tutorial, read the 8051 MICROCONTROLLER INTRODUCTION.

Basic Components of a Microcontroller

The difference between a Microprocessor and a Microcontroller is the availability of the on – chip peripherals like Memory (both RAM and ROM), I/O Ports, Timers / Counters, Communication Interfaces (like Serial Port), etc.

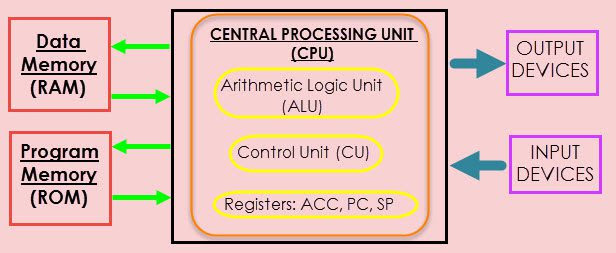

The following image shows the basic components of a Microcontroller. As all the components (and a few other components) are integrated on a single chip (Integrated Circuit – IC), a Microcontroller can be considered as a Microcomputer (or a Computer on – chip).

CPU (Central Processing Unit)

It is the heart of the Microcontroller that mainly comprises of an Arithmetic Logic Unit (ALU) and a Control Unit (CU) and other important components. The CPU is the primary device in communicating with peripheral devices like Memory, Input and Output.

ALU or Arithmetic Logic Unit, as the name suggests, performs the Arithmetical and Logical Operations. CU or Control Unit is responsible for timing of the communication process between the CPU and its peripherals.

Program Memory

The instructions of the CPU are stored in the Program Memory. It is usually implemented as Read Only Memory or ROM, where the Program written in to it will be retained even when the power is down or the system is reset.

Modern Program Memory Modules are generally made up of EEPROM (Electrically Erasable Programmable Read – only Memory), which is a type of non – volatile memory.

In this type of memory, the data can be erased and reprogrammed using special programming signals.

When the microcontroller is powered on or manually reset, the processor executes a set of instructions from a pre-defined memory location (address) in the Program Memory.

Data Memory

Data Memory in a Microcontroller is responsible for storing values of variables, temporary data, intermediate results and other data for proper operation of the program.

Data Memory is often called as RAM (Random Access Memory), which is a type of volatile memory. It is generally organized as registers and includes both Special Function Registers (SFRs) and user accessible memory locations.

Input and Output Ports

I/O Ports or Input / Output Ports provide the microcontroller, a physical connection to the outside world. Input Ports provide a gateway for passing on the data from the outside world with the help of sensors.

The data from the input ports is manipulated (depending on the application) and will determine the data on the output port.

Output Ports allow microcontroller to control external devices (like motors and LEDs). Generally, all ports in microcontrollers have dual functionality i.e. they can act as both input and output port (not at the same time though).

Clock Generator (Oscillator)

A clock signal allows the operations inside the microcontroller and other parts to be synchronous. A Clock Generator is an integral part of the Microcontroller’s Architecture and the user has to provide an additional Timing Circuit in the form of a Crystal.

8051 Microcontroller Architecture and Features

Whenever we are starting to work on a new device like a TV or Washing Machine, we would start by understanding the capabilities of the device. We try to understand the different features of the device like Motor RPM, load capacity and Power Consumption, in case of a washing machine.

This is applicable even in our case i.e. when starting with 8051 microcontroller, it would be best if we started by learning the Internal Hardware Design of the 8051 Microcontroller, which is also called as the 8051 Microcontroller Architecture.

In the next section, we will see the 8051 Microcontroller Architecture and few of its important features. In – depth details about some important features like 8051 Memory Organization and 8051 Input / Output (I/O) Ports will be discussed in a new tutorial.

8051 Microcontroller Architecture

The 8051 Microcontroller is an 8 – bit Microcontroller i.e. it can read, write and process 8 – bit Data. There are a bunch of manufacturers like Atmel, NXP, TI, who manufacture their own versions of 8051 Microcontroller.

Irrespective of the manufacturer, the internal hardware design i.e. the 8051 Microcontroller Architecture remains more or less the same. The following image shows the 8051 Microcontroller Architecture in a block diagram style.

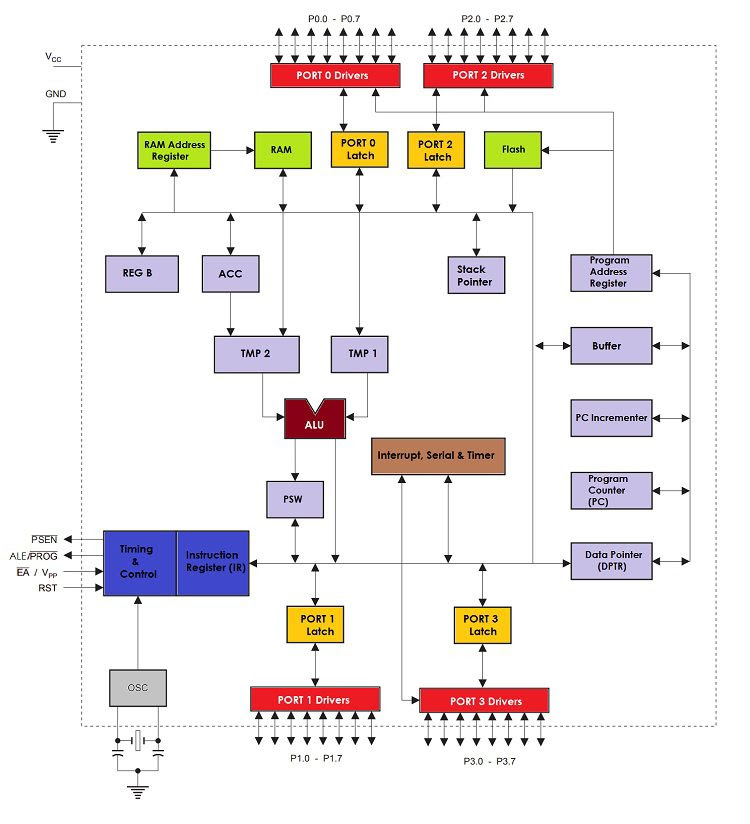

The block diagram of the 8051 Microcontroller Architecture shows that 8051 Microcontroller consists of a CPU, RAM (SFRs and Data Memory), Flash (EEPROM), I/O Ports and control logic for communication between the peripherals.

All these different peripherals inside the 8051 Microcontroller will communicate with each other via the 8 – bit Data Bus, also known as the internal data bus.

Also read this post on 8051 MICROCONTROLLER PIN DIAGRAM AND PIN DESCRIPTION.

8051 Microcontroller Architecture Features

We have seen the internal architecture of the 8051 Microcontroller in the above section. Now, we will see the features of the 8051 Microcontroller Architecture.

NOTE: Some of the features like internal ROM and RAM will vary with the specific model of the 8051 Microcontroller.

• 8 – bit CPU with two Registers A (Accumulator) and B.
• Internal ROM of 8K Bytes – It is a flash memory that supports in – system programming.
• Internal RAM of 256 Bytes – The first 128 Bytes of the RAM i.e. 00H to 7FH is again divided in to 4 banks with 8 registers (R0 – R7) in each bank, 16 bit addressable registers and 80 general purpose registers. The higher 128 Bytes of the RAM i.e. 80H to FFH consists of SFRs or Special Function Registers. Using SFRs we can control different peripherals like Timers, Serial Port, all I/O Ports, etc.

• 32 I/O Pins (Input / Output Pins) – Arranged as 4 Ports: P0, P1, P2 and P3.
• 8- bit Stack Pointer (SP) and Processor Status Word (PSW).
• 16 – bit Program Counter (PC) and Data Pointer (DPTR).
• Two 16 – bit Timers / Counters – T0 and T1.
• Control Registers – SCON, PCON, TCON, TMOD, IP and IE.
• Serial Data Transmitter and Receiver for Full – Duplex Operation – SBUF.
• Interrupts: Two External and Three Internal.
• Oscillator and Clock Circuit.

In this tutorial, we have seen a brief note on the 8051 Microcontroller Architecture. In the next 8051 Tutorial, we will see the 8051 Memory Organization and I/O Ports.
